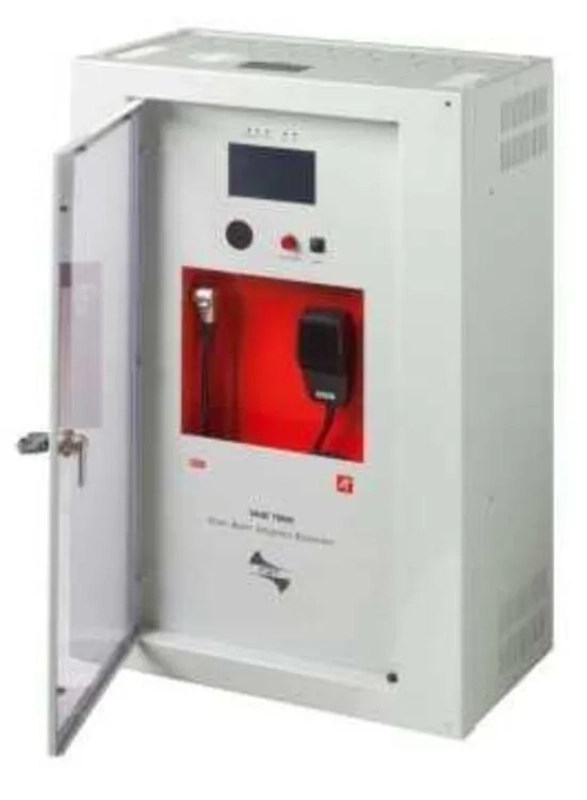

FBT VAIE 7M06 Wall Mount Compact Voice Evac System1000W,6 Zones,Double Output

1000W Wall Mounting Compact VAIE

A brand new range, also equipped with a EN54-16:2008 & EN54-4 certified control unit but these units add to the VAIE functional features a real power boost: 1000 W! As for the VAIE 5500 units, they are able to manage, depending on the model, multiple alarm zones: In this case, from 4 up to 6 zones. Two models will be available:

•  VAIE 7M04 1000W / 4 zones | double output line (A+B)
•  VAIE 7M06 1000W / 6 zones | double output line (A+B)

The rated audio output is 1000W overall, distributable freely among the zones with a maximum limit of 250W per single zone. It includes a 4.3" display with touch screen for selecting the alert and evacuation zones and enabling navigation for adjusting volume levels, configuring the equipment and viewing failures. With a playing back of pre-recorded messages via monitor loudspeaker, allows you to listen to all older messages. It has 7 off controlled contact inputs, configurable for active playing the evacuation and/or alert messages to the programmed zones or for reset. Up to 8 pre-recorded messages can be retrieved from outside through input contacts (of which 2 fixed emergency messages - 1 alert and 1 evacuation message - plus 6 that can be classed as emergency/evacuation/broadcast messages).
