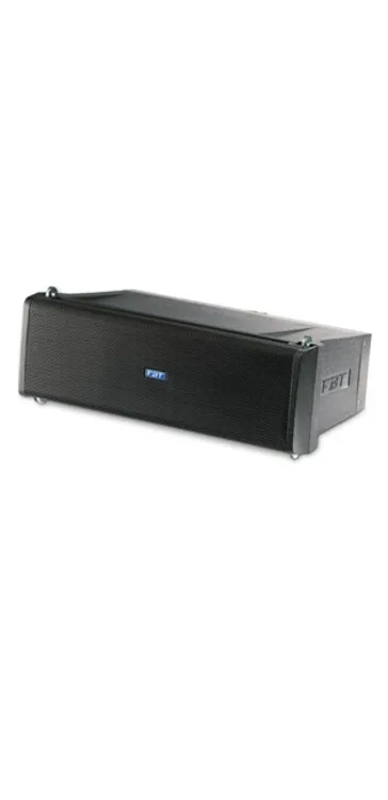

FBT MITUS 206L Passive Line Array - 2x6,5" + 1,4" - 500Wrms+150Wrms

Precision coverage vertical array

500W + 150W - 16ohm 129dB SPL LF / 133dB SPL HF

The FBT MITUS 206L two-way compact line line array system shall incorporate 2 x 6.5” B&C neodymium woofers with1.7” voice coil and 1.4” exit B&C neodymium driver with 2.5” voice coil.
The modularity of the FBT MITUS 206L makes it extremely flexible for a wide range of applications, from a small 2 cabinet P.A. system to an elaborate line array system consisting of up to 12 MITUS 206L cabinets along with multiple FBT MITUS 212FS subs for large concert events.

The FBT MITUS 206L shall meet the following performance criteria: Frequency response of 75Hz to 20kHz,Frequency sensitivity of 97dB LF / 108dB HF, Maximum SPL of 129dB for LF and 133dB for HF, Recommended power amplifier 500W RMS/16 Ohm LF and 150W RMS/16 Ohm HF.

The waveguide, optimized by BEM finite element simulation, offers 100° horizontal dispersion; engineered to be perfectly integrated with the HF compression driver it allows the dispersion of a flat acoustic wave to over 18kHz.
The system shall not include an internal passive crossover.
The front shall be protected by a heavy duty metal grille with anti-resonance spacers and exclusive synthetic cloth to protect the drivers.
Input connectors shall be parallel wired Neutrik NL4 speakon. Polypropylene gas-injected enclosure with integrated rigging hardware adjustable with 0° to 10° angle betwee cabinets at 2° step for flying and ground stacked configurations.
