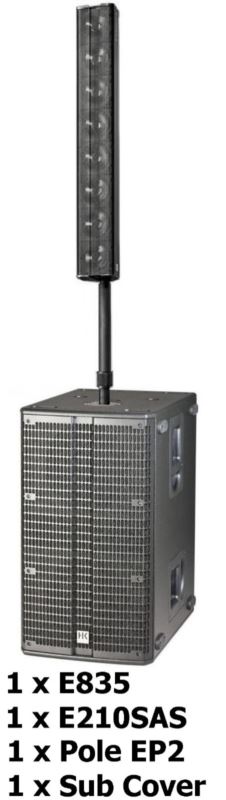

HK Audio Elements Line Array Sub AS E210SAS Bigbase & Single Top E835 PA system

Ex-trade show demo units. Come with full guarantee. They do have a few marks from transport and no original boxes. Comes with the subwoofer cover (top cover available separately) and short mounting pole! Grab a bargain! RRP £2398



E 210 SUB AS – THE INGENIOUSLY DIFFERENT PA

The new E 210 Sub AS system subwoofer comes with two 1,200-watt amps in its engine room. Power amp number one drives the two internal 10″ woofers, with plenty of juice left over to run an external passive type L Sub 1200. The second power amp delivers 900 watts at 2.6 ohms to drive up to three E 835s (or six E 435s).

TECHNICAL DATA

E 210 SUB AS
• Headline System Subwoofer
• Nominal impedance 8
• Frequency response -10 dB 38Hz – 150Hz via active system x-over
• Power Rating 2400 W
• Amplifier Class D
• Active protection circuits RMS limiter, subsonic filter; DC, load, & thermal temp.- controlled fan)
• LF Speaker 2 x 10" (2.5“ voice coil)
• Connections 1 x XLR Combo In 1 x XLR Through 2 x Speakon-Out 1 x SUB + 1 x Mid/ High 2 x E-Connect Out
• Input Sensitivity +4dBu
• Pole mount 2 x E-Connect
• Dimensions (WxHxD) 38 x 67 x 56 cm
• Weight 36.7 kg, 80.8 lbs



E 835 – THE INGENIOUSLY DIFFERENT PA

Our engineers developed the E 835 mid/ high unit to afford you even greater flexibility when you want to set up bigger systems. Loaded with eight speakers, it can handle 300 watts at 8 ohms impedance. The E 835 comes highly recommended when you want to minimize the number of mechanical connections. The E 835 and E 435 mid/ high units’ design and tuning are identical, so feel free to combine them.

• Scalable mid/ high unit featuring line array technology
• Excellent directivity; projects sounds evenly
• Rugged aluminum housing and E-Connect bus
• Exceedingly light weight (4.5 kg)

TECHNICAL DATA

E 835
• Power-handling nominal (RMS) 300 W
• Nominal impedance 8 ohms
• Sensitivity 1W/1m 100 dB (half space)
• Frequency response -10 dB 140 Hz – 20 kHz, via active system
• Speaker 8 x 3.5" broadband
• Directivity 70° horizontal
• Crossover frequency 140 Hz, 12 dB/oct.
• Connections 1 x E-Connect-In
• 1 x E-Connect-Out 1 x E-Connect-Out
• Dimensions (WxHxD) 11 x 74.5 x 12 cm (excl. E-Connect- sleeves)
• Weight 4.5 kg, 9.9 lbs

Speaker Pole

These speaker poles are unlike any other. They enable simple, speedy setup for smaller configurations. Freely adjustable, they forward the signal to the top-mounted mid/ high units via the internal E-Connect coupler/ bus – no speaker cords necessary.

• Anodized aluminum with ring lock
• Stepless adjustable height
• 44 to 60.5 cm
• Integrated E-Connect bus
• Exceedingly light weight
• 0.5 kg





Listed as collection only but contact us for courier options. (We don't have the original boxes, so collection preferred).
