USED Adastra 952.969 Mixer Amplifier 60W

In Stock
0 Votes

Add To Basket

Please correct the errors and try again.

Product Description

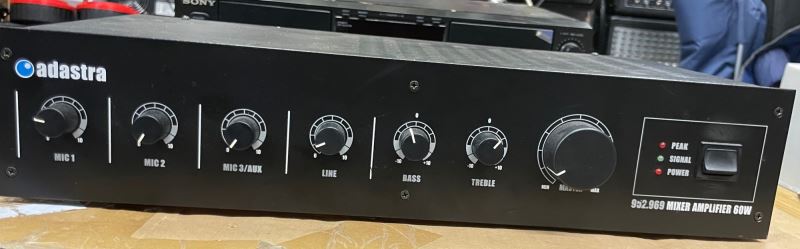

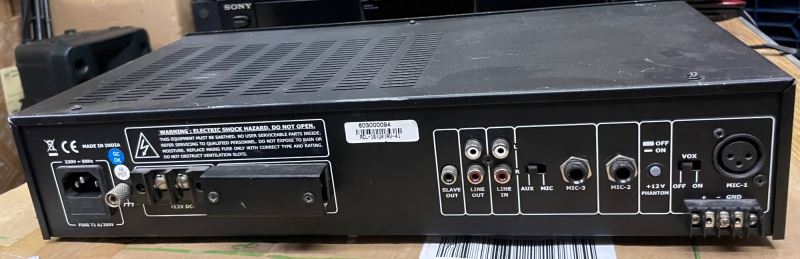

This high quality 4-channel mixer amplifier offer 60Wrms of output power, and features 3 microphone and 1 line input. Microphone channel 1 offers a balanced XLR input with switchable VOX priority, Microphone channel 2 and 3 offer an unbalanced 6.3mm jack input with channel 3 being switchable to line level to allow an auxiliary input. Channel 4 is a Line input with RCA phono connection. The mixer also offers a master dual EQ allowing adjustment of the bass and treble frequencies.

Maximum output power 70W
4 input channels
Channel 1 electronically balanced
Channel 3 Mic/Aux switchable
Switchable phantom power +12Vdc
VOX priority channel 1
8 Ohms and 100V line outputs
Bass and treble controls
2U 19" rack mountable
Peak and signal LEDs
Mains and battery operation
DC power 42W
Frequency response 100Hz - 12kHz (�3dB)
Input impedance : Aux/Line 10k Ohms
Input impedance : Mic 1.8k Ohms
Input sensitivity : Aux (unbalanced) 300mV (-10.4dBV)
Input sensitivity : Line (unbalanced) 300mV (-10.4dBV)
Input sensitivity : Mic 1 (balanced) 1.5mV (-56.4dBV)
Input sensitivity : Mic 2 (unbalanced) 1.5mV (-56.4dBV)
Input sensitivity : Mic 3 (unbalanced) 1.5mV (-56.4dBV)
Output : Line 1V @ 600 Ohms
Output power : Max. 70W
Output power : RMS < 2% T.H.D 60W
Outputs : Speaker 8 ohms & 100V
Power : Battery 12Vdc (8A)
Power : Mains 230Vac, 50Hz
Dimensions 425 x 88 x 230mm
Weight 7.5kg
