Product Description

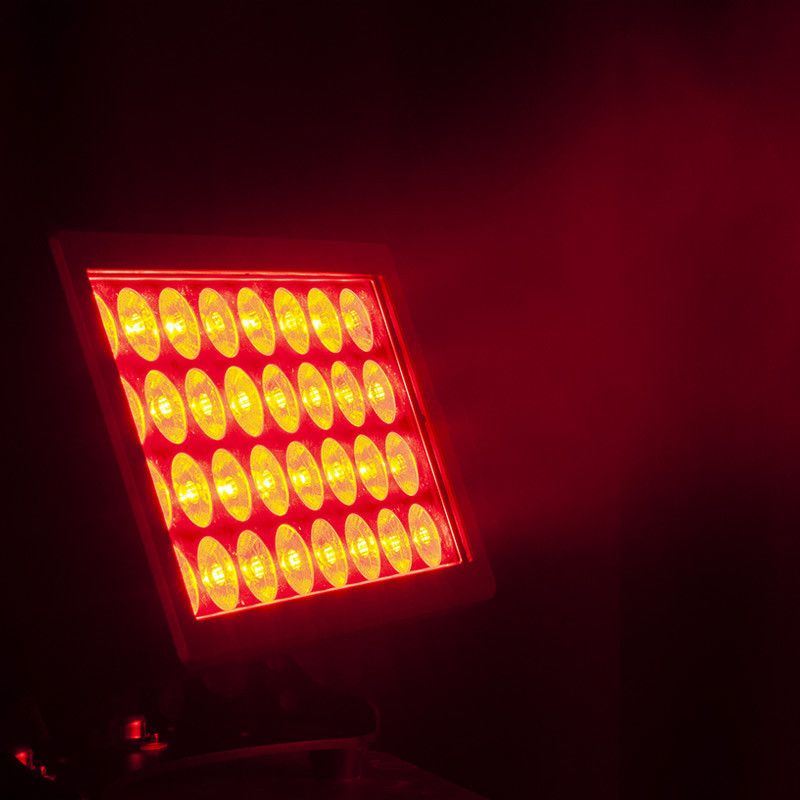

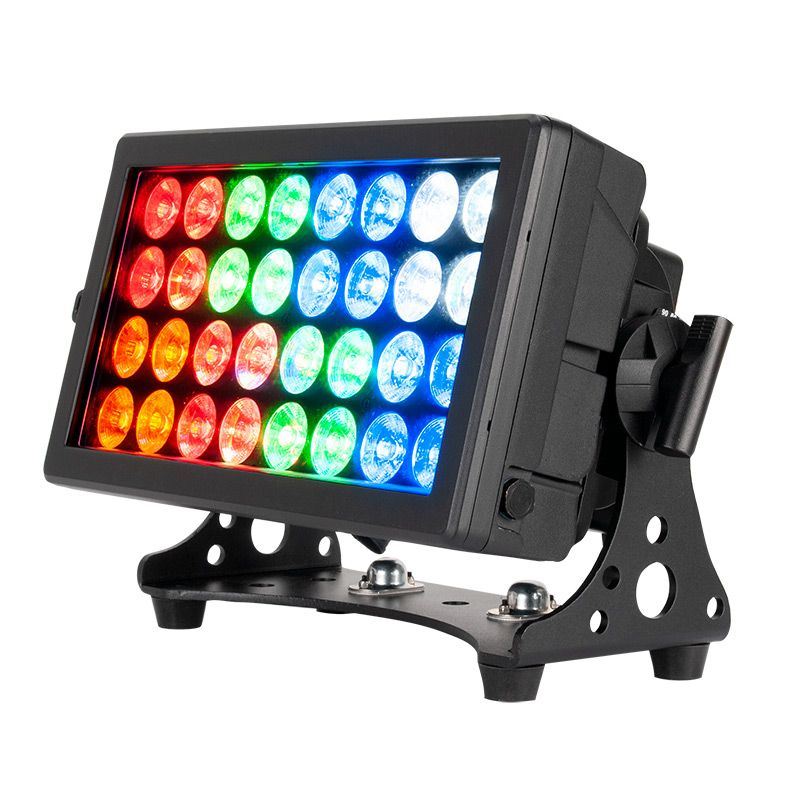

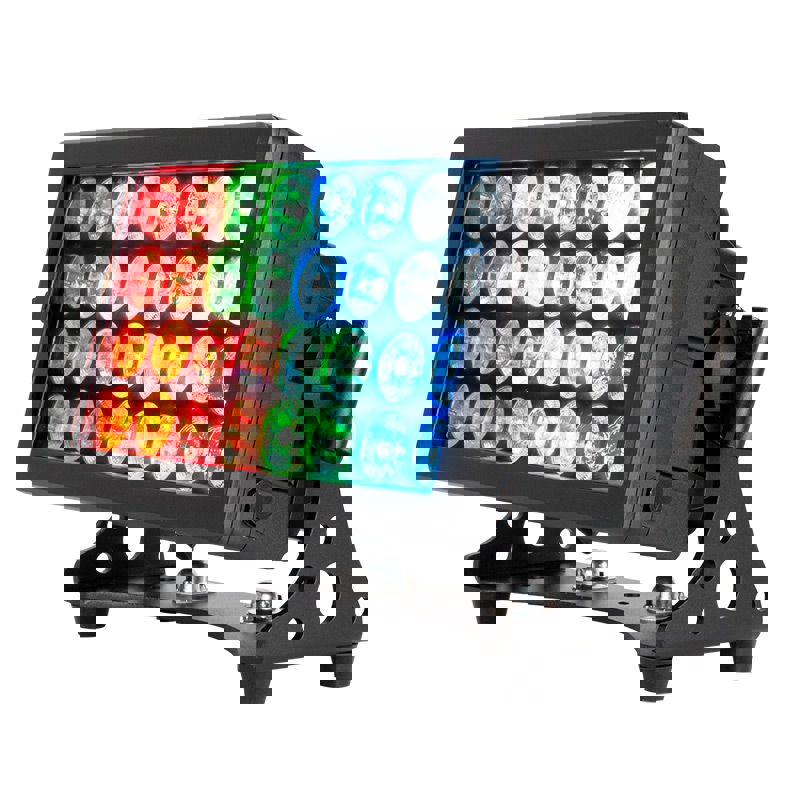

The ADJ 32 HEX Panel IP is an IP65 rated multi-functional wash / blinder / color strobe fixture for indoor or outdoor use. It features 32x 12W HEX LEDs (6-IN-1 – RGBWA+UV), 8 individually controlled sections with Pixel Zone Control and a 24-degree beam angle. All metal, black housing.


Light Source:

• LED: 32x 12W HEX (6-In-1) RGBWA+UV LEDs (50,000 hr.)

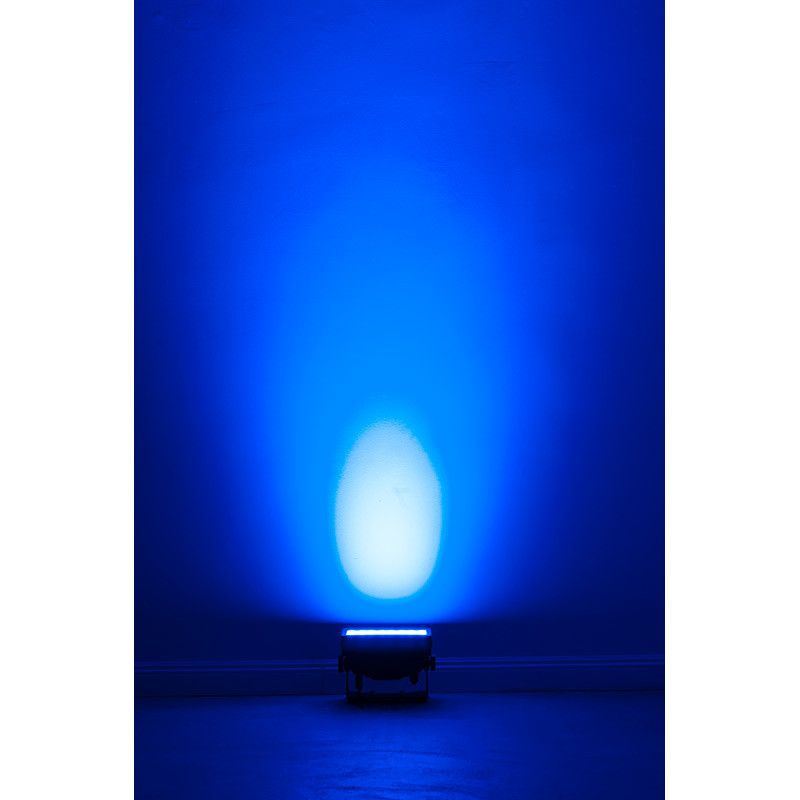

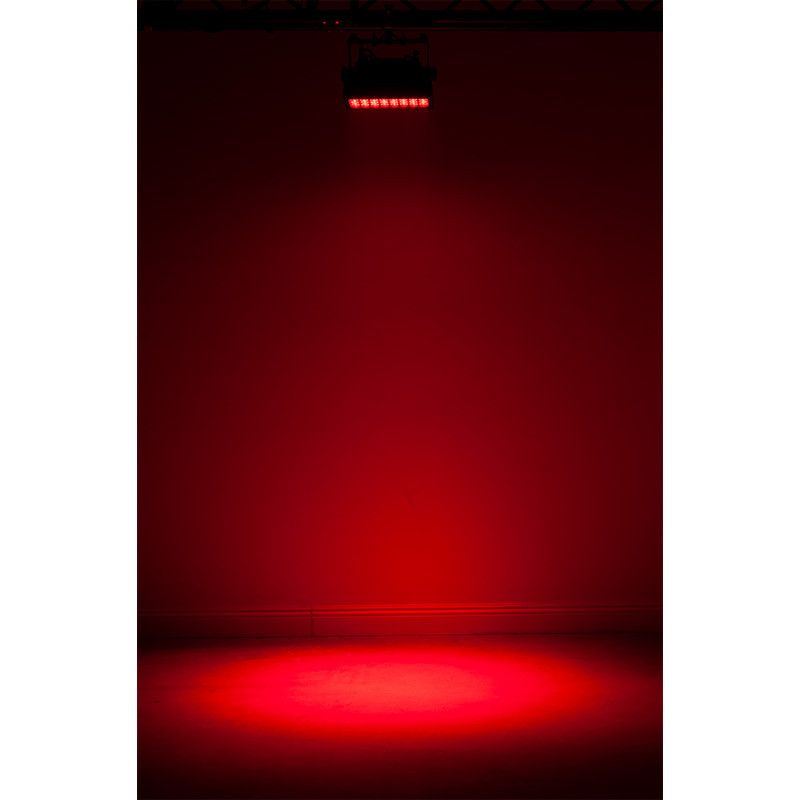

• Beam Angle: 24-degrees

• LUX: 33040 @ 1M, 1322 @ 5M (Full On No UV); 20659 @ 1M, 826 @ 5M (Full On)



• IP65 rated – protects from dust, sand, moister, water

• All metal construction with black housing

• Includes heavy duty bracket

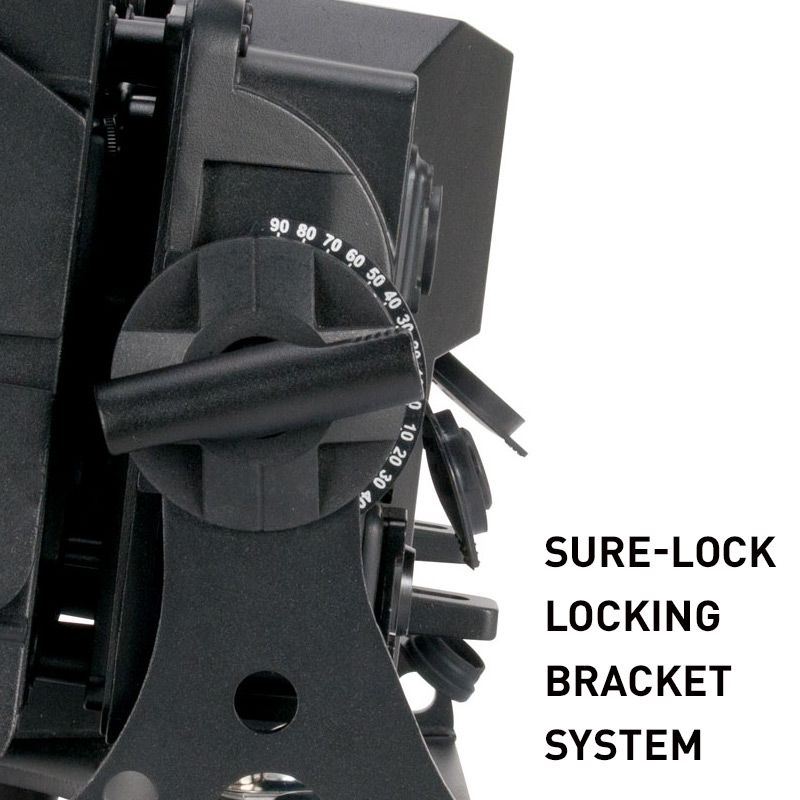

• Sure-lock locking bracket system (securely locks every 10-degrees)

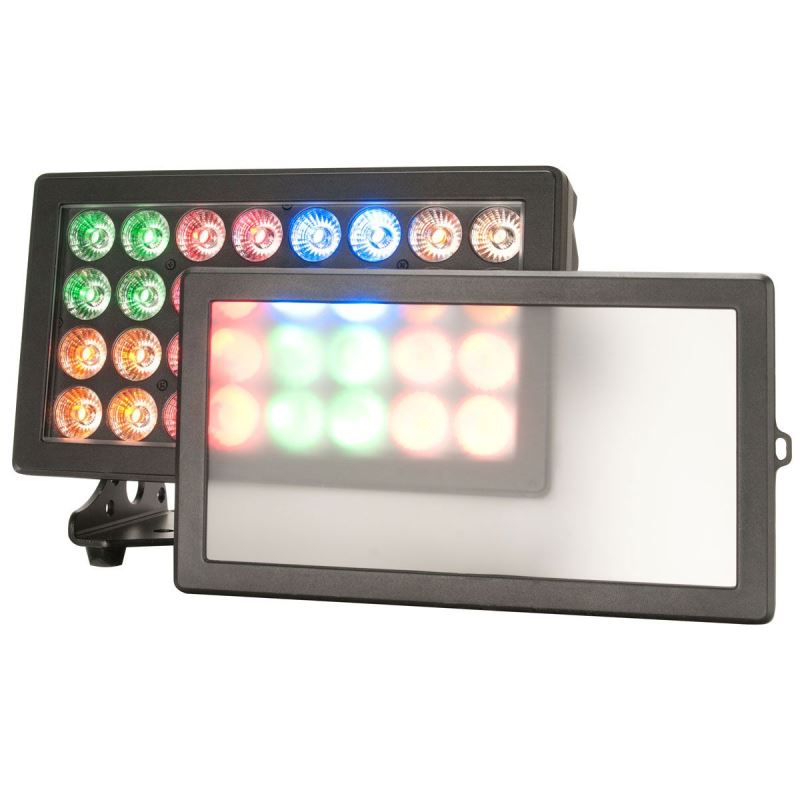

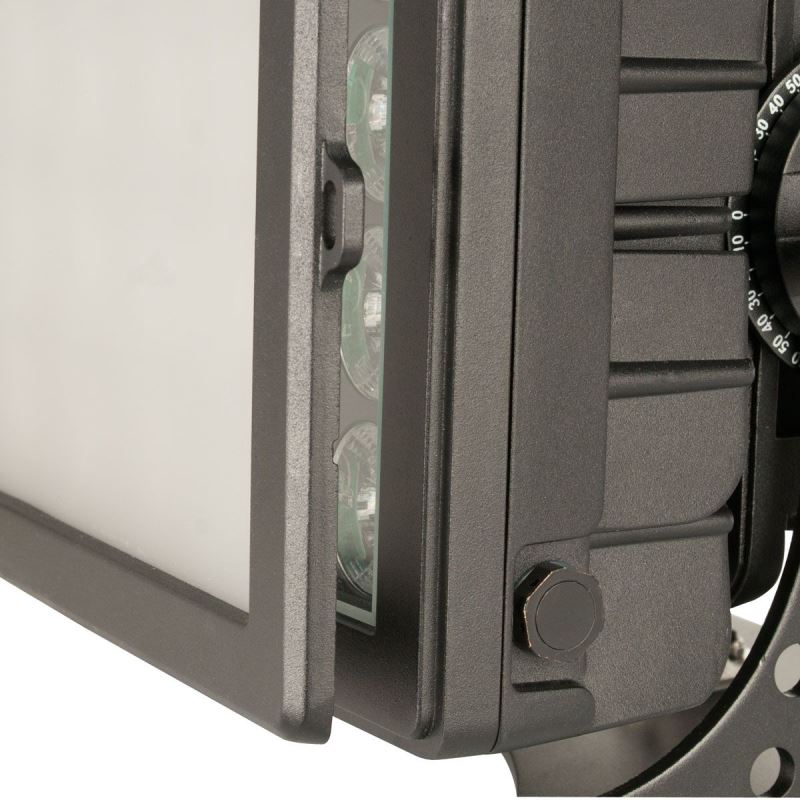

• Includes magnetic removable filter frame to add a diffusion filter

• Flicker free for film and broadcast

• Linear variable white temperature control

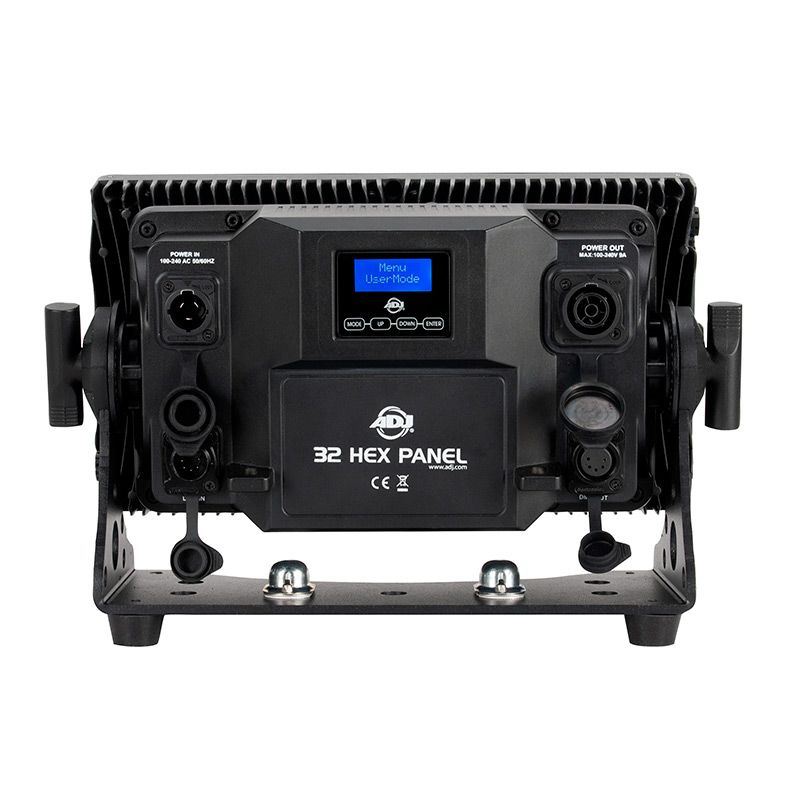

• Display: OLED display with function buttons

• Data In/Out: IP65 Locking 5-pin XLR Connector In/Out (with rubber protective covers over connections

• Power In/Out: IP65 Locking Power Connector In/Out (with rubber protective covers over connections)

• All Metal Heavy-Duty Housing: Built To Last In Outdoor or Touring Applications



• Multiple DMX channel modes

• 8 individually controlled sections with Pixel Zone Control

• 0-100% Dimming + smooth 16-bit Dimming

• 5 Dimming Curve Modes

• Control Mode: DMX512, RDM

• Gamma Brightness: Multiple settings

• LED Refresh Rate: Multiple settings

• With Wired Digital Communication Network



• Power voltage: AC100-240V, 50/60Hz (Multi-voltage)

• Daisy chain up to 3 fixtures max (@ 120V); 6 fixtures max (@ 230V)

• Power consumption: 220W max

• cETLus Approved (Control #4010765)



Dimensions & Weight:

• Dimension: 13.75”x 9” x 6.75” / 350x230x170mm

• Weight: 24.25 lbs. / 11kg.

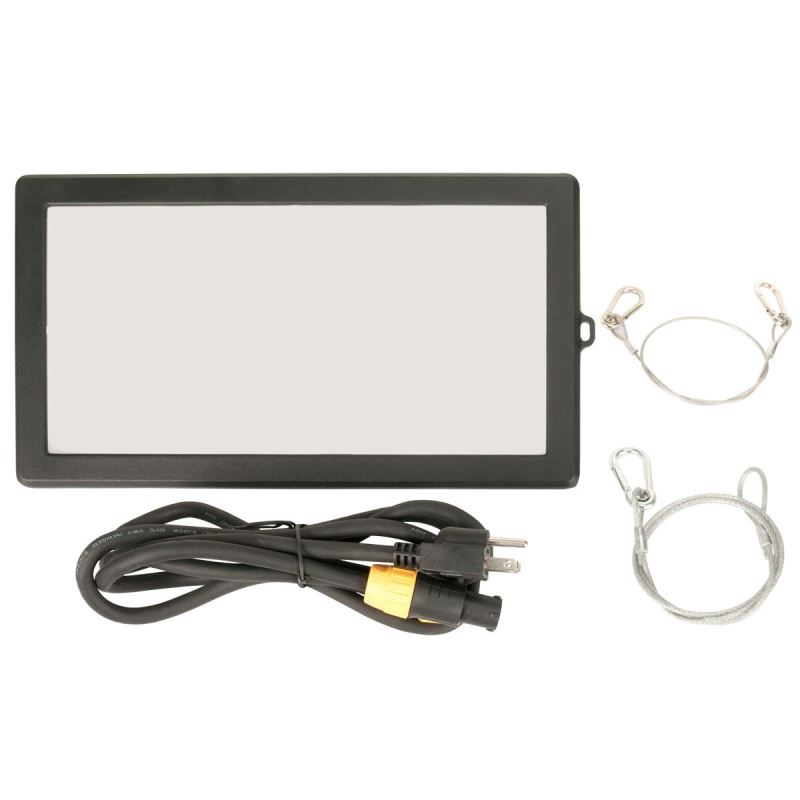

What's Included:

• Removable frost filter with metal frame

•IP65 Locking power cable

• Two Safety cables
