StageCore Cable Reel

REEL - Small Cable Drum

A compact, empty cable reel ideal for smaller cable runs. Designed to hold:

• 100m of 6mm cable

• 75m of 7mm cable

• 55m of 8mm cable

• 35m of 10mm cable

• 25m of 12mm cable

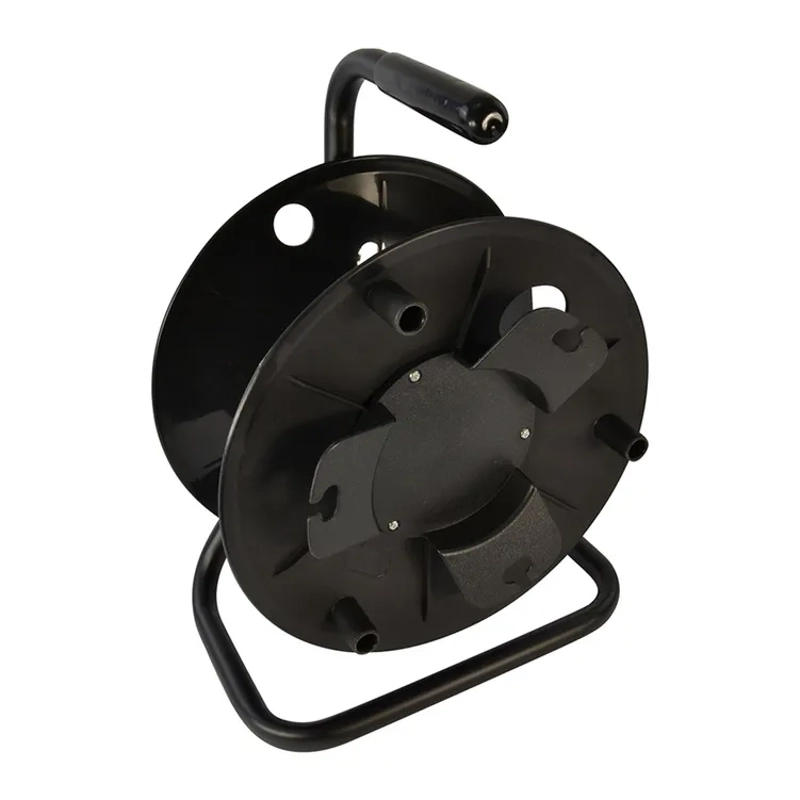

This is a tough and reliable cable drum, featuring a metal frame with a rubber-coated handle for a secure, comfortable grip. The drum itself is made from strong, impact-resistant plastic and can be easily rotated using one of the three hand grips positioned around the outer edge.

A 15mm hole is located inside the drum, allowing a cable to be fed through the central metal blanking plate. This plate can be removed using three screws, enabling the addition of sockets if required. It also includes a collar for managing spare cable, helping to keep things neat and tidy.

The REEL is fitted with a locking mechanism to prevent rotation when not in use.

Although primarily designed for microphone and audio cables, the REEL is suitable for a wide range of cable types including AV, data, speaker, and mains accommodating any cable up to approximately 15mm in diameter.

Note: When using with mains power, always fully unwind the cable before switching on to prevent heat build-up caused by coiled cable.
